[머신러닝][Kaggle][Python] 개인 건강 데이터를 이용한 심부전 예측 모델2머신러닝 | 딥러닝 2022. 5. 22. 21:46더보기
[머신러닝][Kaggle][Python] 개인 건강 데이터를 이용한 심부전 예측 모델1 :
출처 : https://www.kaggle.com/datasets/andrewmvd/heart-failure-clinical-data
Boxplot 계열의 그래프를 이용하여 범주별 통계 확인
Boxplot 계열의 그래프는 각 범주별로 표시된 4분위 수와 이상치를 통해서 범주 사이의 차이를 확인할 수 있고,
이를 통해 범주(독립 변수)와 종속 변수 사이 상관관계에 대한 가설 생성을 돕는다.

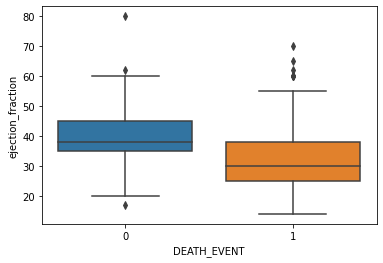

사망 - 박출계수
sns.boxplot(x='DEATH_EVENT', y='ejection_fraction', data=df)

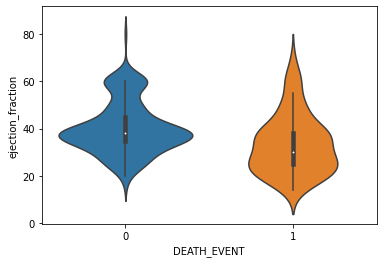

# 바이올린 그래프를 이용하면 그래프에 데이터의 밀집 위치에 대한 정보도 포함할 수 있다. sns.violinplot(x='DEATH_EVENT', y='ejection_fraction', data=df)

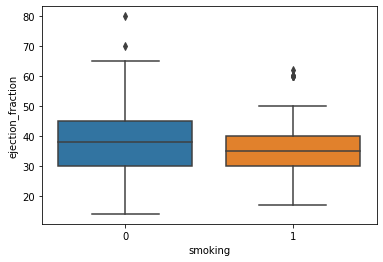

흡연 - 박출계수
sns.boxplot(x='smoking', y='ejection_fraction', data=df)

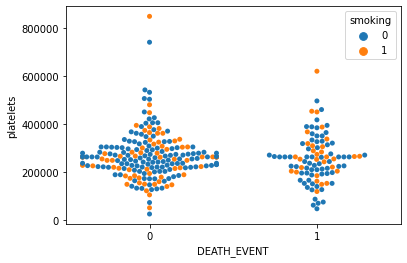

사망 - 박출계수 (세분 흡연)
# swarmplot은 바이올린 그래프의 역할을 포함하고, # hue 파라미터를 이용해 더 세분화된 분포를 확인 할 수 있다. sns.swarmplot(x='DEATH_EVENT', y='platelets', hue='smoking', data=df)
모델 생성
표준화
연속형 데이터에 표준화 진행
# 연속형 입력 데이터, 범주형 입력 데이터, 출력 데이터로 구분 X_num = df[['age', 'creatinine_phosphokinase','ejection_fraction', 'platelets','serum_creatinine', 'serum_sodium']] X_cat = df[['anaemia', 'diabetes', 'high_blood_pressure', 'sex', 'smoking']] y = df['DEATH_EVENT'] # 수치형 입력 데이터를 전처리하고 입력 데이터 통합하기 scaler = StandardScaler() scaler.fit(X_num) X_scaled = scaler.transform(X_num) X_scaled = pd.DataFrame(data=X_scaled, index=X_num.index, columns=X_num.columns) X = pd.concat([X_scaled, X_cat], axis=1) # 행 방향으로 조인
학습, 테스트 데이터 분리
연속형 데이터에 표준화 진행
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.3, random_state=1)
Logistic Regression 모델 생성
모델 학습 및 평가
model_lr = LogisticRegression(max_iter=1000) # 학습 1000번 진행 model_lr.fit(X_train, y_train) model_lr.score(X_test, y_test) # 0.7555555555555555
학습한 모델을 통한 예측
pred = model_lr.predict(X_test) # X_test 데이터를 기반으로 y값 예측 print(classification_report(y_test, pred)) # 실제 y_test값과 예측된 y값 비교 평가 # precision recall f1-score support # # 0 0.78 0.92 0.84 64 # 1 0.64 0.35 0.45 26 # # accuracy 0.76 90 # macro avg 0.71 0.63 0.65 90 # weighted avg 0.74 0.76 0.73 90
XGBoost 모델 생성
모델 학습 및 평가
model_xgb = XGBClassifier() model_xgb.fit(X_train, y_train) model_xgb.score(X_test, y_test) # 0.8
학습한 모델을 통한 예측
pred = model_xgb.predict(X_test) print(classification_report(y_test, pred)) # precision recall f1-score support # # 0 0.84 0.89 0.86 64 # 1 0.68 0.58 0.62 26 # # accuracy 0.80 90 # macro avg 0.76 0.73 0.74 90 # weighted avg 0.79 0.80 0.79 90

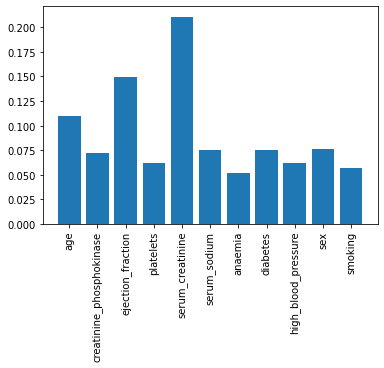

각 열(특성)의 중요도 시각화
plt.bar(X.columns, model_xgb.feature_importances_) plt.xticks(rotation=90) plt.show()
